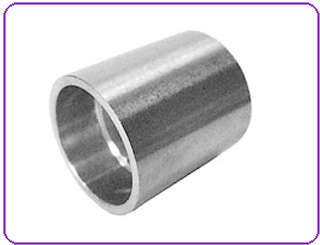

Full Coupling / ASME B16.11 Socket Weld Full Coupling
Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Socket Weld Full Coupling. Neminox Steel & Engineering Co. are largest pipe fitting manufacturer for all type of industries in India. The whole manufacturing process is subject to a 100% quality control. ASME B16.11/BS3799 Socket Weld Fittings Full Coupling Available in different dimensions and specifications.
Dimension | : | ANSI B 16.11 / BS3799 |
Size | : | 1/2" NB to 4"NB |
Class | : | 3000 LBS, 6000 LBS, 9000 LBS |
Schedule | : | Sch 5 to Sch XXS. |
Range | : | Union, Tee, Elbow, Socket, Nipple, Coupling, Weldolet, Threadolet, Sockolet. |
Types:
Materials and Grade:
Stainless Steel Socket Weld Full Coupling:
Duplex Steel Socket Weld Full Coupling:
Carbon Steel Socket Weld Full Coupling:
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Socket Weld Full Coupling:
Nickel Alloy Socket Weld Full Coupling:
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Socket Weld Full Coupling:
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

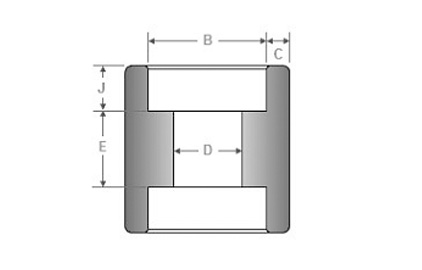

Socket Weld Fittings ASME B16.11 Full Coupling Dimensions:
Class 3000
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
B | J | D | C | Coupling E |
||
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
9.5 | |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
9.5 | |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
13 | |
1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
13 | |
1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
13 | |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
19 | |
2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
19 | |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
19 | |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
19 |
Class 6000
NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
B | J | D | C | Coupling E |
||
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
9.5 | |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
9.5 | |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
13 | |
1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
13 | |
1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
13 | |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
19 |
