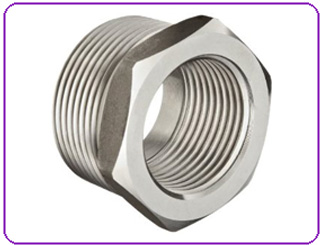

Hex Head Bushing / ASME B16.11 Threaded Hex Head Bushing
Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Threaded Fitting Hex Head Bushing. Neminox Steel & Engineering Co. are largest pipe fitting manufacturer for all type of industries in india. The whole manufacturing process is subject to a 100% quality control. ASME B16.11 Threaded Hex Head Bushing Available in different dimensions and specifications.
Dimension | : | ANSI B 16.11 |
Specification | : | ASTM A 182 |
Size | : | 1/4" to 4" |
Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Range | : | Union, Tee, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet, Threadolet, Sockolet. |
Types:
Materials and Grade:
Stainless Steel Threaded Fitting Hex Head Bushing:
ASTM / ASME SA 403 GR WP "S" / "W" / " WX"
304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.
Duplex Steel Threaded Fitting Hex Head Bushing:
Carbon Steel Threaded Fitting Hex Head Bushing:
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Fitting Hex Head Bushing:
Nickel Alloy Threaded Fitting Hex Head Bushing:
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Threaded Fitting Hex Head Bushing:
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Threaded Fittings Boss Dimensions:
NPS | Minimum Length E |
Minimum Hex Height J |
Nominal F |
1/2 | 14 | 8 | 22 |
3/4 | 16 | 10 | 27 |
1 | 19 | 10 | 35 |
1¼ | 21 | 14 | 44.5 |
1½ | 21 | 16 | 51 |
2 | 22 | 18 | 63.5 |
2½ | 27 | 19 | 76 |
3 | 28 | 21 | 89 |
4 | 32 | 25 | 117.5 |
