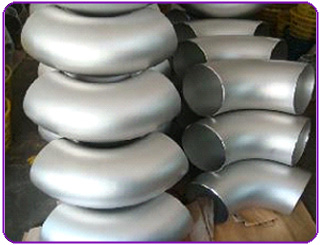

Seamless Buttwelding 45° and 90° Elbows

Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Seamless Butt weld 45° and 90° Elbow. Seamless Butt weld 45° and 90° Elbow manufactured using superior grade raw materials. Seamless Butt weld 45° and 90° Elbow are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.



Type : Butt weld (BW)
Standards : ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic   Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and   Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low   Pressure, Corrosion Resistant Applications'
Dimension : ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS   B2312, JIS B2313
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80,   S100, S120, S140, S160, XXS and etc.
Schedule : Sch 5 TO Sch XXS.
Size : 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”)



Materials and Grade:

Stainless Steel Seamless Butt weld 45° and 90° Elbow:

ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Carbon Steel Seamless Butt weld 45° and 90° Elbow:

ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2

Nickel Alloy Seamless Butt weld 45° and 90° Elbow:

Monel 400 & 500,
Inconel 600 & 625,
Incolloy 800, 825,
Hastelloy C22, C276,
Hastelloy,
Nickel,
Monel,
Inconel,
Alloy20,
Copper Nickel
Cupro-Nickel 90/10
Cupro-Nickel 70/30

Alloy steel Seamless Butt weld 45° and 90° Elbow:

ASTM a234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91

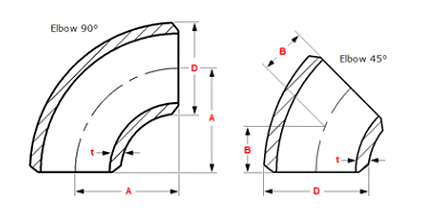

ASME B16.9 Seamless Buttwelding 45° and 90° Elbows Dimensions

Nominal   Pip  Size (NPS)

DN

Outside Diameter at Bevel

Center- to-End

45º Elbow   B

90º Elbow   A

Long Radius

Long Radius

Short Radius

1/2



21.3

16

38



3/4



26.7

19

38



1

25

33.4

22

38

25

1-1/4

32

42.2

25

48

32

1-1/2

40

48.3

28

57

38

2

50

60.3

35

76

51

2-1/2

65

73.0

45

95

64

3

80

88.9

51

114

76

3-1/2

90

101.6

57

133

89

4

100

114.3

64

152

102

5

125

141.3

79

191

127

6

150

168.3

95

229

152

8

200

219.1

127

305

203

10

250

273.0

159

381

254

12

300

323.8

191

457

305

14

350

355.6

222

533

356

16

400

406.4

254

610

406

18

450

457

286

686

457

20

500

508

318

762

508

22

550

559

343

838

559

24

600

610

381

914

610



NOTES: All dimensions are in millimeters.
