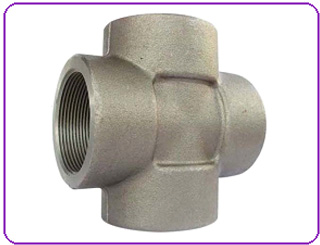

Cross / ASME B16.11 Threaded Cross
Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Threaded Fitting Cross. Neminox Steel & Engineering Co. are largest pipe fitting manufacturer for all type of industries in india. The whole manufacturing process is subject to a 100% quality control. ASME B16.11 Threaded Cross Available in different dimensions and specifications.
| Dimension | : | ANSI B 16.11 |
| Specification | : | ASTM A 182 |
| Size | : | 1/4" to 4" |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Range | : | Union, Tee, Elbow, Socket, Nipple, Coupling, Plug, Bushing, Weldolet, Threadolet, Sockolet. |
Types:
Forged Cap, Forged Reducer, Forged Elbow, Forged Tee, Forged Insert , Forged Stub-Ends, Forged Return Bends, Forged Collar, Forged Cross.
Materials and Grade:
Stainless Steel Threaded Fitting Cross:
ASTM / ASME SA 403 GR WP "S" / "W" / " WX"
304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347H.
Duplex Steel Threaded Fitting Cross:
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel Threaded Fitting Cross:
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Fitting Cross:
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Nickel Alloy Threaded Fitting Cross:
ASTM / ASME SB 336,
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Nickel Alloy 200 (UNS No. 2200), Nickel Alloy 201 (UNS No. 2201), Monel 400 (UNS No. 4400), Alloy 20 / 20 CB 3 (UNS No. 8020), Inconel 825 (UNS No. 8825), Inconel 600 (UNS No. 6600), Inconel 601 (UNS No. 6601), Inconel 625 (UNS No. 6625), Hastelloy C 276 / C22 / B2 (UNS No. 10276)
Copper Alloy Steel Threaded Fitting Cross:
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

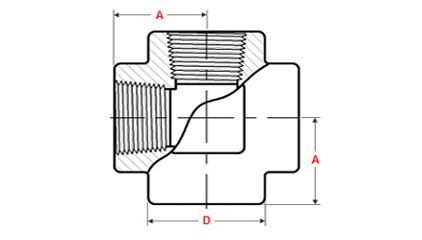

Dimensions
| Class 2000 | Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| A | - | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | - | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| Wt | - | 0.500 | 0.460 | 0.777 | 1.125 | 1.688 | 2.450 | 3.188 | 5.560 | 16.438 | 19.500 | 32.688 | |
Class 3000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| Wt | 0.438 | 0.567 | 0.970 | 1.500 | 2.500 | 3.620 | 4.125 | 6.500 | 8.125 | 16.750 | 25.675 | 32.000 | |
Class 6000 |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
| Wt | 0.563 | 1.188 | 1.500 | 2.750 | 4.313 | 6.625 | 10.750 | 11.500 | 22.188 | 27.500 | 54.000 | 43.500 | |
