Reducers

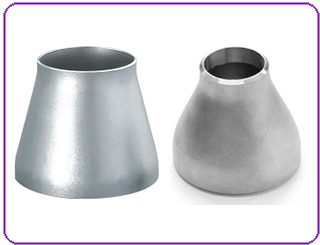

Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of ASME B16.9 Butt weld Reducers. Butt weld Reducers manufactured using superior grade raw materials. Butt weld Reducers are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.



Type : Butt weld (BW)
Standards : ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic   Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and   Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low   Pressure, Corrosion Resistant Applications'
Dimension : ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS   B2312, JIS B2313
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80,   S100, S120, S140, S160, XXS and etc.
Schedule :

Sch 5 TO Sch XXS.
Size : 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”)



Materials and Grade:

Stainless Steel Reducers:

ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Carbon Steel Reducers:

ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2

Nickel Alloy Reducers:

Monel 400 & 500,
Inconel 600 & 625,
Incolloy 800, 825,
Hastelloy C22, C276,
Hastelloy,
Nickel,
Monel,
Inconel,
Alloy20,
Copper Nickel
Cupro-Nickel 90/10
Cupro-Nickel 70/30

Alloy steel Reducers:

ASTM a234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91

ASME B16.9 Butt weld Reducers Dimensions

REDUCERS
inches mm D d H
3/4 x 3/4 20 x 15 26,67 21,34 38,10
3/4 x 3/8 20 x 10 26,67 17,14 38,10
1 x 3/4 25 x 20 33,40 26,67 50,80
1 x 1/2 25 x 15 33,40 21,34 50,80
1 1/4 x 1 32 x 25 42,16 33,40 50,80
1 1/4 x 3/4 32 x 20 42,16 26,67 50,80
1 1/4 x 1/2 32 x 15 42,16 21,34 50,80
1 1/2 x 1 1/4 40 x 32 48,26 42,16 63,50
1 1/2 x 1 40 x 25 48,26 33,40 63,50
1 1/2 x 3/4 40 x 20 48,26 26,67 63,50
1 1/2 x 1/2 40 x 15 48,26 21,34 63,50
2 x 1 1/2 50 x 40 60,32 48,26 76,20
2 x 1 1/4 50 x 32 60,32 42,16 76,20
2 x 1 50 x 25 60,32 33,40 76,20
2 x 3/4 50 x 20 60,32 26,67 76,20
2 1/2 x 2 65 x 50 73,02 60,32 88,90
2 1/2 x 1 1/2 65 x 40 73,02 48,26 88,90
2 1/2 x 1 1/4 65 x 32 73,02 42,16 88,90
2 1/2 x1 65 x 25 73,02 33,40 88,90
3 x 2 1/2 80 x 65 88,90 73,02 88,90
3 x 2 80 x 50 88,90 60,32 88,90
3 x 1 1/2 80 x 40 88,90 48,26 88,90
3 x 1 1/4 80 x 32 88,90 42,16 88,90
3 1/2 x 3 90 x 80 101,60 88,90 101.60
3 1/2 x 2 1/2 90 x 65 101,60 73,02 101.60
3 1/2 x 2 90 x 50 101,60 60,32 101.60
3 1/2 x 1 1/2 90 x 40 101,60 48,26 101.60
3 1/2 x 1 1/4 90 x 32 101,60 42,16 101.60
4 x 3 1/2 100 x 90 114,30 73,02 101.60
4 x 3 100 x 80 114,30 88,90 101.60
4 x 2 1/2 100 x 65 114,30 73,02 101.60
4 x 2 100 x 50 114,30 60,32 101.60
4 x 1 1/2 100 x 40 114,30 48,26 101.60
5 x 4 125 x 100 141,30 114,30 127,00
5 x 3 1/2 125 x 90 141,30 101,60 127,00
5 x 3 125 x 80 141,30 88,90 127,00
5 x 2 1/2 125 x 65 141,30 73,02 127,00
5 x 2 125 x 50 141,30 60,32 127,00
6 x 5 150 x 125 168,27 141,30 139,7
6 x 4 150 x 100 168,27 114,30 139,7
6 x 1/2 150 x 90 168,27 101,60 139,7
6 x 3 150 x 80 168,27 88,90 139,7
6 x 1/2 150 x 65 168,27 73,02 139,7
8 x 6 200 x 150 219,07 168,27 152,4
8 x 5 200 x 125 219,07 141,30 152,4
8 x 4 200 x 100 219,07 114,30 152,4
8 x 3 1/2 200 x 90 219,07 101,60 152,4
10 x 8 250 x 200 273,05 219,07 177,8
10 x 6 250 x 150 273,05 168,27 177,8
10 x 5 250 x 125 273,05 141,30 177,8
10 x 4 250 x 100 273,05 114,30 177,8
12 x 10 300 x 250 323,85 273,05 203,2
12 x 8 300 x 200 323,85 219,07 203,2
12 x 6 300 x 150 323,85 168,27 203,2
12 x 5 300 x 125 323,85 141,30 203,2
14 x 12 350 x 300 355,60 323,85 330,2
14 x 10 350 x 250 355,60 273,05 330,2
14 x 8 350 x 200 355,60 219,07 330,2
14 x 6 350 x 150 355,60 168,27 330,2
16 x 14 400 x 350 406,40 355,60 355,6
16 x 12 400 x 300 406,40 323,85 355,6
16 x 10 400 x 250 406,40 273,05 355,6
16 x 8 400 x 200 406,40 219,07 355,6
18 x 16 450 x 400 457,20 406,40 381,0
18 x 14 450 x 350 457,20 355,60 381,0
18 x 12 450 x 300 457,20 323,85 381,0
18 x 10 450 x 250 457,20 273,05 381,0
20 x 18 500 x 450 508,00 457,20 508,0
20 x 16 500 x 400 508,00 406,40 508,0
20 x 14 500 x 350 508,00 355,60 508,0
20 x 12 500 x 300 508,00 323,85 508,0
22 x 20 550 x 500 558,80 508,00 508,0
22 x 18 550 x 450 558,80 457,20 508,0
22 x 16 550 x 400 558,80 406,40 508,0
22 x 14 550 x 350 558,80 355,60 508,0
24 x 22 600 x 550 609,6 558,80 508,0
24 x 20 600 x 500 609,6 508,00 508,0
24 x 18 600 x 450 609,6 457,20 508,0
24 x 16 600 x 400 609,6 406,40 508,0
Dimension in mm.



ASME B16.9 Butt weld Reducers Dimensions tolerances

DIMENSIONAL TOLERANCES - REDUCERS
  Reducers
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1		 Overall Length
H
1/2 a 2 1/2 1 0,8 Not 2
3 a 3 1/2 1 1,6 less 2
4 +2 -1 1,6 than 2
5 a 6 +3 -1 1,6 87,50% 2
8 2 1,6 of nominal 2
10 +4 -3 3,2 tickness 2
12 a 18 +4 -3 3,2 3
20 a 24 +6 -5 4,8   3
26 a 30 +7 -5 4,8   3
32 a 48 +7 -5 4,8   5



ASME B16.9 Butt weld Reducers Weights

WEIGHTS OF FITTINGS
NPS
inches		 REDUCERS*
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1/2 0.04 0.04 0.05 0.06
3/4 0.10 0.10 0.14 0.18
1 0.12 0.12 0.16 0.22
1 1/4 0.18 0.18 0.22 0.27
1 1/2 0.21 0.21 0.28 0.33
2 0.30 0.30 0.40 0.55
2 1/2 0.45 0.45 0.80 1.00
3 0.50 0.50 0.90 1.20
4 0.80 0.80 1.50 2.20
5 1.40 1.40 2.70 3.70
6 2.00 2.00 4.00 5.80
8 3.10 3.10 6.90 9.30
10 4.80 4.80 10.5 14.5
12 9.00 9.00 19.0 25.0
14 15.5 15.5 31.0 41.5
16 19.0 19.0 38.0 50.5
18 23.0 23.0 46.0 61.5
20 34.0 34.0 58.5 78.0
24 50.0 50.0 75.0 100
Approximate weights in kg, density 8 kg/dm3
Weights are referred to the reduction with the first smaller diameter
