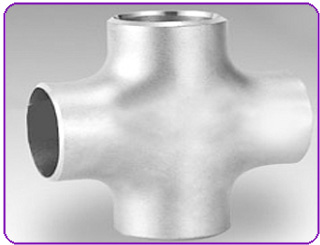

Reducing Outlet Tees and Reducing Outlet Crosses
Neminox Steel & Engineering Co. are Manufacturer, Exporter and Supplier of Butt weld Reducing Outlet Tees and Reducing Outlet Crosses. Butt weld Reducing Outlet Tees and Reducing Outlet Crosses manufactured using superior grade raw materials. Butt weld Reducing Outlet Tees and Reducing Outlet Crosses are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.
| Type | : | Butt weld (BW) |
| Standards | : | ASME / ANSI - B 16.9 ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings' API 590-605 ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings' ASME B16.25 - 'Buttwelding Ends' ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns' MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications' |
| Dimension | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Thickness | : | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Schedule | : | Sch 5 TO Sch XXS. |
| Size | : | 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”) |
Materials and Grade:
Stainless Steel Butt weld Reducing Outlet Tees and Reducing Outlet Crosses:
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel Butt weld Reducing Outlet Tees and Reducing Outlet Crosses:
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2
Nickel Alloy Butt weld Reducing Outlet Tees and Reducing Outlet Crosses:
Inconel 600 & 625,
Incolloy 800, 825,
Hastelloy C22, C276,
Hastelloy,
Nickel,
Monel,
Inconel,
Alloy20,
Copper Nickel
Cupro-Nickel 90/10
Cupro-Nickel 70/30
Alloy steel Butt weld Reducing Outlet Tees and Reducing Outlet Crosses:
ASTM a234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91

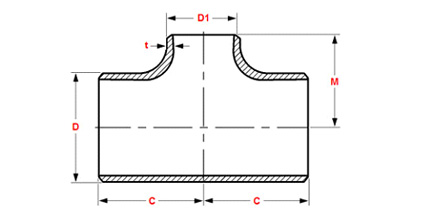

ASME B16.9 Butt weld Reducing Outlet Tees and Reducing Outlet Crosses Dimension
Nominal Pipe Size (NPS) |
DN |
Outlet Diameter at Bevel |
|
||
Run |
Outlet |
Run.C |
Outlet. M[Notes(1)] |
||
1/2*1/2*3/8 |
15*15*10 |
21.3 |
17.3 |
25 |
25 |
1/2*1/2*1/4 |
15*15*8 |
21.3 |
13.7 |
25 |
25 |
3/4*3/4*1/2 |
20*20*15 |
26.7 |
21.3 |
29 |
29 |
3/4*3/4*3/8 |
20*20*10 |
26.7 |
17.3 |
29 |
29 |
1*1*3/4 |
25*25*20 |
33.4 |
26.7 |
38 |
38 |
1*1*1/2 |
25*25*15 |
33.4 |
21.3 |
38 |
38 |
1-1/4*1-1/4*1 |
32*32*25 |
42.2 |
33.4 |
48 |
48 |
1-1/4*1-1/4*3/4 |
32*32*20 |
42.2 |
26.7 |
48 |
48 |
1-1/4*1-1/4*1/2 |
32*32*15 |
42.2 |
21.3 |
48 |
48 |
1-1/2*1-1/2*1-1/4 |
40*40*32 |
48.3 |
42.2 |
57 |
57 |
1-1/2*1-1/2*1 |
40*40*25 |
48.3 |
33.4 |
57 |
57 |
1-1/2*1-1/2*3/4 |
40*40*20 |
48.3 |
26.7 |
57 |
57 |
1-1/2*1-1/2*1/2 |
40*40*15 |
48.3 |
21.3 |
57 |
57 |
2*2*1-1/2 |
50*50*40 |
60.3 |
48.3 |
64 |
60 |
2*2*1-1/4 |
50*50*32 |
60.3 |
42.2 |
64 |
57 |
2*2*1 |
50*50*25 |
60.3 |
33.4 |
64 |
51 |
2*2*3/4 |
50*50*20 |
60.3 |
73.0 |
64 |
44 |
2-1/2*2-1/2*2 |
65*65*50 |
73.0 |
60.3 |
76 |
70 |
2-1/2*2-1/2*1-1/2 |
65*65*40 |
73.0 |
48.3 |
76 |
67 |
2-1/2*2-1/2*1-1/4 |
65*65*32 |
73.0 |
42.2 |
76 |
64 |
2-1/2*2-1/2*1 |
65*65*25 |
73.0 |
88.9 |
76 |
57 |
3*3*2-1/2 |
80*80*65 |
88.9 |
73.0 |
86 |
83 |
3*3*2 |
80*80*50 |
88.9 |
60.3 |
86 |
76 |
3*3*1-1/2 |
80*80*40 |
88.9 |
48.3 |
86 |
73 |
3*3*1-1/4 |
80*80*32 |
88.9 |
101.6 |
86 |
70 |
3-1/2*3-1/2*3 |
90*90*80 |
101.6 |
88.9 |
95 |
92 |
3-1/2*3-1/2*2-1/2 |
90*90*65 |
101.6 |
73.0 |
95 |
89 |
3-1/2*3-1/2*2 |
90*90*50 |
101.6 |
60.3 |
95 |
83 |
3-1/2*3-1/2*1-1/2 |
90*90*40 |
101.6 |
48.3 |
95 |
79 |
4*4*3-1/2 |
100*100*90 |
114.3 |
101.6 |
105 |
102 |
4*4*3 |
100*100*80 |
114.3 |
88.9 |
105 |
98 |
4*4*2-1/2 |
100*100*65 |
114.3 |
73.0 |
105 |
95 |
4*4*2 |
100*100*50 |
114.3 |
60.3 |
105 |
89 |
4*4*1-1/2 |
100*100*40 |
114.3 |
48.3 |
105 |
86 |
5*5*4 |
125*125*100 |
141.3 |
114.3 |
124 |
117 |
5*5*3-1/2 |
125*125*90 |
141.3 |
101.6 |
124 |
114 |
5*5*3 |
125*125*80 |
141.3 |
88.9 |
124 |
111 |
5*5*2-1/2 |
125*125*65 |
141.3 |
73.6 |
124 |
108 |
5*5*2 |
125*125*50 |
141.3 |
60.3 |
124 |
105 |
Dimensions Tolerance of ASME B16.9 Straight Tees
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 1.6 - 0.8 |
1.6 | 1.6 | + 2.4 - 1.6 |
+ 4 - 3.2 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | + 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Center-to-End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||||||
GENERAL NOTE: All dimensions are in millimeter.
Note: Outlet dimension M for run sizes NPS 14(DN350) and larger is recommended but not required.
